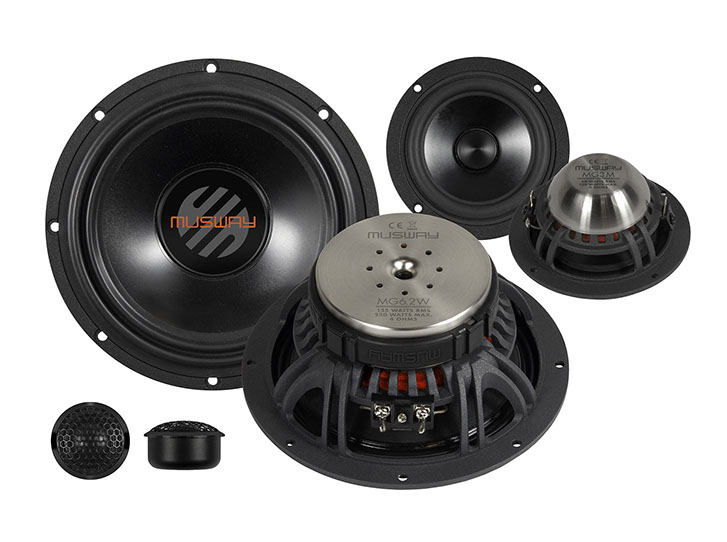

MG6.3A

16,5 CM (6.5”) ACTIVE 3-WAY COMPONENT SYSTEM

More and more discerning music lovers are choosing MUSWAY products. The amplifiers in particular, with or without an integrated DSP, are ideally suited for the highest demands. With the new high-end MG loudspeaker, MUSWAY is now opening another chapter for award-winning products, but this time in terms of loudspeakers. The MG6.3A was named “BEST PRODUCT” right away and with flying colors in the specialist magazine Car & Hifi 06/2021. The editors were particularly impressed by the sensationally low distortion of the loudspeakers, which "are among the cleanest in recent years".



Even the 16.5 cm bass-midrange driver is a feast for the eyes. With its very narrow struts, the high-quality aluminum basket ensures optimal ventilation behind the centering. A beautifully twisted and nickel-plated T-plate also ventilates the voice coil through several ventilation openings, which means that overheating is almost impossible. This means that the door loudspeaker can also reproduce high levels without distortion over a longer period of time. The high level is achieved, among other things, by a 13.4 mm long winding height of the voice coil, which ensures a large linear deflection of the membrane. The larger than average, 13.7 ounce magnetic drive in Y30 quality is protected by a rubber boot.



Another technical HIGHLIGHT is the sandwich cone, which is very complex to manufacture. In this case, this means that the top layer of ultra-thin aluminum is "connected" to the layer below, which in turn is made of lightweight paper. This achieves very efficient damping. The result is a linear frequency response up to 5000 Hz without peaks.



Probably one of the best tweeters on the market is the MG6.2T. Equipped with a 26 mm silk dome and coupling volume, the tweeter can not only be used below 2000 Hz, it even plays very linearly up to over 25,000 Hz. For the great performance, he got the extremely rare grade 1+ in the “Distortion” discipline (C&H 6/2021) in the test.

MG6.2W (Pair)

16,5 cm (6.5“) Midbass Speaker

Power Rating RMS 125 Watts

Power Rating Max. 250 Watts

Impedance 4 Ohms

Frequency Range 39 - 5000 Hz

Aluminum-paper Composite Cone

Installation Depth 67 mm

Installation Diameter Ø 143 mm

Outer Diameter Ø 166 mm



MG3M (Pair)

7,5 cm (3“) Midrange Speaker

Power Rating RMS 60 Watts

Power Rating Max. 120 Watts

Impedance 4 Ohms

Frequency Range 200 - 18000 Hz

Aluminum Cone

Installation Depth 40 mm

Installation Diameter Ø 73 mm

Outer Diameter Ø 90 mm

MG6.2T (Pair)

26 mm (1.1“) Tweeter

Power Rating RMS 125 Watts

Power Rating Max. 250 Watts

Impedance 4 Ohms

Frequency Range 2200 - 30000 Hz

Silk Diaphragm Dome

Installation Depth 19,5 mm

Installation Diameter Ø 44 mm

Outer Diameter Ø 49 mm



Downloads:

EUR 449,00

Manufacturer's suggested retail price, changes and mistakes reserved.
