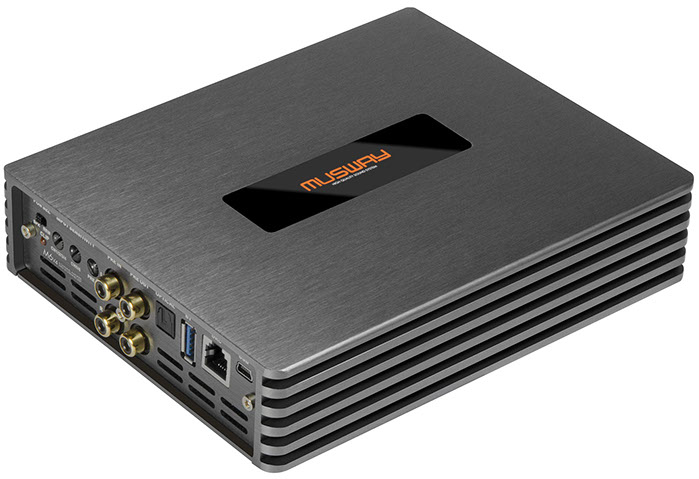

Musway - M6v4

M6V4

6-CHANNEL CLASS D AMPLIFIER WITH 8-CHANNEL DSP

The 6-channel M6 power amplifier is not only a bestseller in the Musway range, but has been writing car hifi history for years: In the Car & Hifi issue 01/2025, the new v4 version secured two first places: It was awarded “BEST PRODUCT” in the top class and was named “PRODUCT OF THE YEAR 2025” by the editors in the DSP power amplifier category. The excellent sound and the noticeable increase in performance overshadowed everything: In the test laboratory, the new M6 impressed with 6 × 96 watts at 4 ohms and a whopping 6 × 166 watts at 2 ohms - more than ever before. The fact check confirms: Musway performance figures are not only reliable - they are even exceeded!

High-quality components are also a matter of course for Musway in the area of signal processors: The Analog Devices™ ADAU1452 is used as a DSP chip, combined with signal converters from Burr-Brown™. Sound adjustments can be made in a flash using a smartphone app or classic PC software. Whether frequency response or runtime correction, Q factor or runtime adjustment, phase rotation or complex crossover configurations, you have a wide range of settings at your disposal to professionally meet all your audiophile requirements. Plug+Play via MX-Connect™ or ISO variant.

The M6Evo has a 20 cm cable with open ends, while the M6 comes with a 2.5 meter long ISO cable for easy plug+play connection to the car radio. There are numerous optional T-cable sets to easily connect the M6 via plug+play. Now also as 24V Version available.

Features:

• High Level Input with EPS® (Error Protection System)

• Start-Stop ready, Auto Turn-On

• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)

• Dual 64bit, 295 MHz DSP technology, controllable via PC software or Smartphone App

• Soft-Clipping (power attenuation) in 2 Ohm operation

• Signal-to-noise Ratio 94 dB, Frequency Response 10 Hz – 20 kHz (-3dB)

• THD 0,014% (1 kHz, 4 Ohms, 5 W)

• Separately controllable input sensitivity (Channel 1-4, Channel 5-6), Clipping LEDs

• Inclusive 2,50 m MX-Connect™ Cable Harness on ISO

• Plug+Play with vehicle-specific cable sets

• External Bluetooth® USB-Dongles BTS, BTS-HD & BTA2 for Audio Streaming & App Control (optional)
