M10

10-CHANNEL CLASS D AMPLIFIER WITH 14-CHANNEL DSP

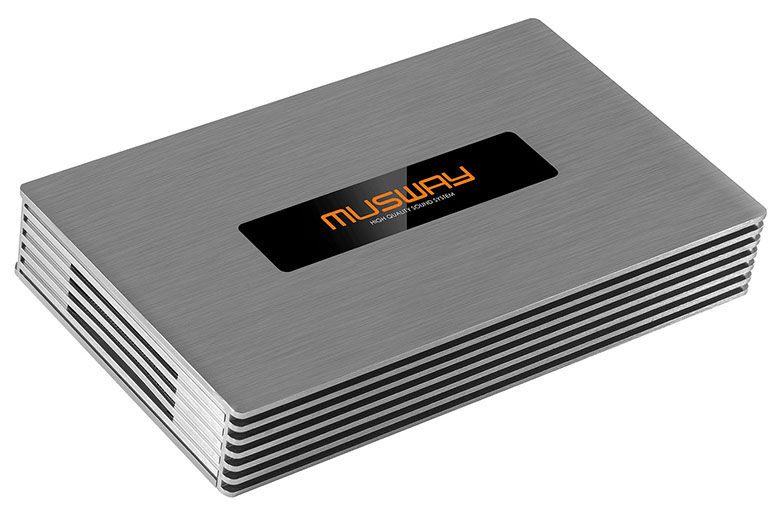

The new Musway M10 amplifier impresses with its 10 Class-D channels and an integrated 14-channel DSP with 4 outputs. It is aimed particularly at hi-fi enthusiasts who want to create more complex car hi-fi speaker systems without complex cabling. The M10 with its two powerful subwoofer channels is particularly suitable for current BMW and Mercedes models where powerful under-seat or footwell subwoofers need to be driven.

The amplifier therefore offers an impressive selection of low-level and high-level inputs. In addition to six RCA inputs and an AUX input, there are also 10 high-level inputs available that can receive signals directly from the speakers. Channels 1-8 are designed for a load of 24 V/RMS, while channels 9 and 10 can even be driven with 32 V/RMS - ideal for vehicles with complex factory systems. Of course, the high-level signals are protected with EPS to avoid errors in the diagnostic system.

Features:

• Intelligent High Level Input (Error Protection System)

• Start-Stop ready, Auto Turn-On

• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1466)

• Dual 64bit, 295 MHz DSP technology, controllable via new V3 PC software or V3 App

• Soft-Clipping (power attenuation) in 2 Ohm operation

• Signal-to-noise Ratio ≥95dB

• Frequency Response 15 Hz – 22 kHz (-3dB)

• THD ≤0,05% (1 kHz, 4Ω, 90% Power)

• Separately controllable input sensitivity (Channel 1-8, Channel 9-10, AUX), Clipping LEDs

• External Bluetooth® USB-Dongles BTS, BTS-HD & BTA2 for Audio Streaming & App Control (optional)

• Digital remote control DRC1 with OLED display for controlling various DSP functions (optional)

*  Musway multi-channel amplifiers use innovative “Dynamic Headroom” (DHR) technology to achieve higher maximum RMS output power in multi-channel applications. This technology shows its strengths above all when not all channels require full power over the entire frequency spectrum at the same time. In active operation, the DHR technology enables the channels that are responsible for the tweeter or midrange to have an even higher dynamic impulse output, from which the entire audio system benefits. Thus, the Musway multi-channel amplifiers with DHR offer an effective and dynamic power reserve that is not available in amplifiers with only one or two channels.

EUR 1199,00

Manufacturer's suggested retail price, changes and mistakes reserved.
