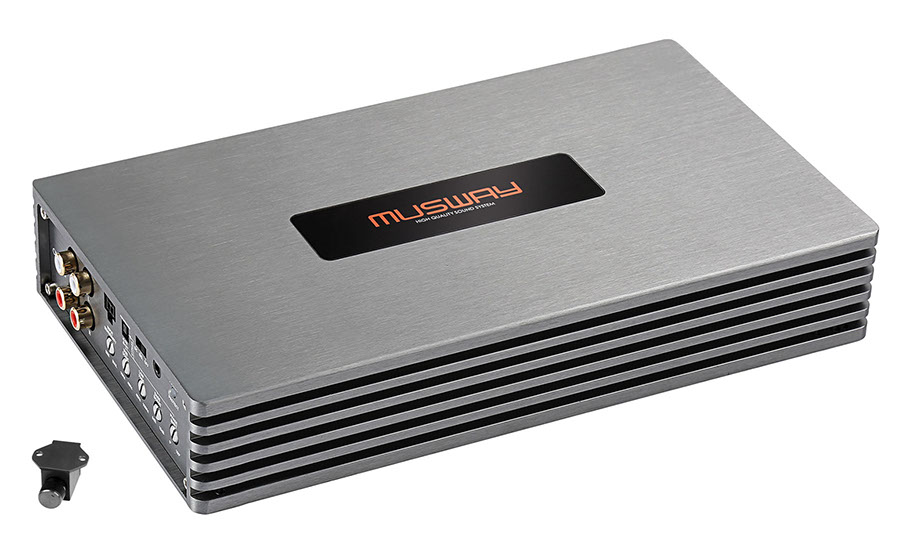

ONE1500

MONO CLASS D AMPLIFIER

The new amplifiers of the MX series are ideally suited not only to enter into optically ingenious combinations with the MUSWAY DSP amps M4+, M6 or D8. Of course, they are also perfect for forming a high-end team with the TUNE12, DSP68PRO or DSP68 stand-alone processor. With the MX models it is therefore possible to create powerful 7, 8 or even 12-channel combinations.



The elegantly designed amps convey their qualities as soon as they are touched: No rattling sheet metal, heat sinks and end panels made of brushed aluminum and a flush MUSWAY logo on top. The amplifiers have everything on board that a modern sound system needs: EPS, auto turn-on, high and low level inputs and much more. With the integrated PURE IN> OUT function, the internal crossovers can be bypassed and the amp can only be used for pure amplification, which is particularly ideal in conjunction with DSPs.

Specifications:

1 x 475 Watts RMS @ 4 Ohms

1 x 900 Watts RMS @ 2 Ohms

1 x 1550 Watts RMS @ 1 Ohm

Subsonic Filter 10 - 40 Hz

Lowpass Filter 40 - 150 Hz

Bass Boost 0 - 18 dB

Phase Shift 0 - 180°

RCA Inputs, RCA Outputs

High Level Inputs with EPS

Auto Turn On Function

Filter Bypass Function (Pure Amplification)

Bass Remote Controller

Dimensions: 150 x 45 x 260 mm

Features:

  • Start-Stop ready, Auto Turn-On
  • EPS (Error Protection System)
  • Interference Free Technology, EMC proved
  • PURE IN>OUT Function
  • High and Low Level Inputs
  • Brushed aluminum heat sink and end panels
  • Compact Bass Level Remote Controller

Downloads:

EUR 429,00

Manufacturer's suggested retail price, changes and mistakes reserved.
