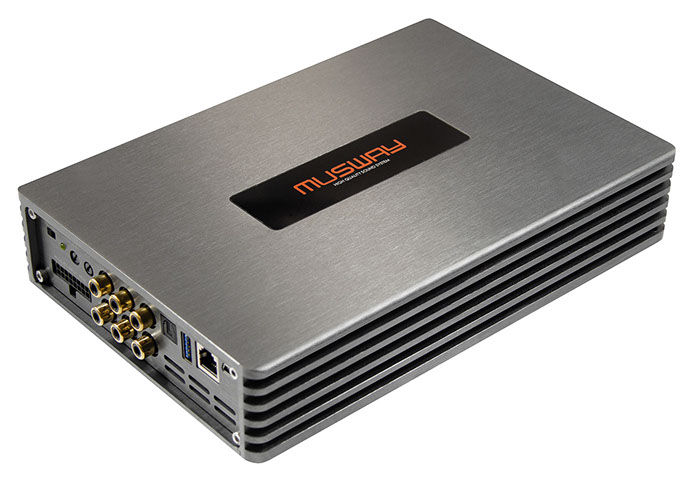

M6PRO

6-CHANNEL CLASS D AMPLIFIER WITH 10-CHANNEL DSP

The M6PRO 6-channel DSP amplifier is aimed at real sound enthusiasts who do not want to install simple plug+play upgrades for factory systems, but prefer tailor-made car audio systems with higher performance. Experienced professionals are willing to accept the extra effort involved in wiring. It is noteworthy that the M6PRO version is hardly any larger than the M6 ​​plug+play version, despite an increase in performance of over 400 watts. With compact dimensions of 16 x 25 cm, the more powerful Pro version remains almost identical to the regular M6. As good as the regular M6 already is - the PRO version goes one step further. With an impressive 6 x 142 watts at 4 ohms and 6 x 249 watts at 2 ohms, it is the most powerful 6-channel DSP amplifier ever measured in the Car&Hifi test laboratory.



The PRO version also offers an improved package of features: A powerful 10-channel DSP with 4 processed RCA outputs for controlling additional amplifiers has been implemented. The proven Analog Devices™ ADAU1452 is used as the DSP chip, combined with high-end signal converters from Burr-Brown™. Sound adjustments can be made in a flash using a smartphone app or classic PC software.

Features:

• High Level Input with EPS® (Error Protection System)

• Start-Stop ready, Auto Turn-On

• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)

• Dual 64bit, 295 MHz DSP technology, controllable via PC software or Smartphone App

• Soft-Clipping (power attenuation) in 2 Ohm operation

• Signal-to-noise Ratio 100 dB

• Frequency Response 10 Hz – 22,5 kHz (-3dB)

• THD 0,01% (1 kHz, 4 Ohms, 10 W)

• External Bluetooth® USB-Dongles BTS, BTS-HD & BTA2 for Audio Streaming & App Control (optional)

• Digital remote control DRC1 with OLED display for controlling various DSP functions (optional)

Specifications:

6 x 120/200 Watts RMS @ 4/2 Ohms or

3 x 400 Watts RMS @ 4 Ohms bridged

6 x Low Level Input RCA

6 x High Level Input with EPS®

2 x AUX Input RCA

1 x Optical Input/Stereo PCM

6 x Loudspeaker Output amplified

4 x Pre-Amplifier Output RCA (configurable via DSP)

Dimensions: 160 x 45 x 235 mm

EUR 899,00

Manufacturer's suggested retail price, changes and mistakes reserved.

All trademarks, trade names or brands are the property of their respective owners.

Recommended Accessories:

DRC1

Digital Remote Control with Display
to control the DSP Functions

Compatible with all DSP models

BTS

Bluetooth® Dongle for

Audio Streaming

Compatible with all DSP models

BTA2

Bluetooth® Dongle for

Audio Streaming & App Control

Compatible with the DSP models
TUNE12, DSP68, M6v3/v4, M4+v3/v4,
D8v3/v4, M10, M12, M5

BTS-HD

Bluetooth® Dongle for

HD Audio Streaming

Compatible with all DSP models
