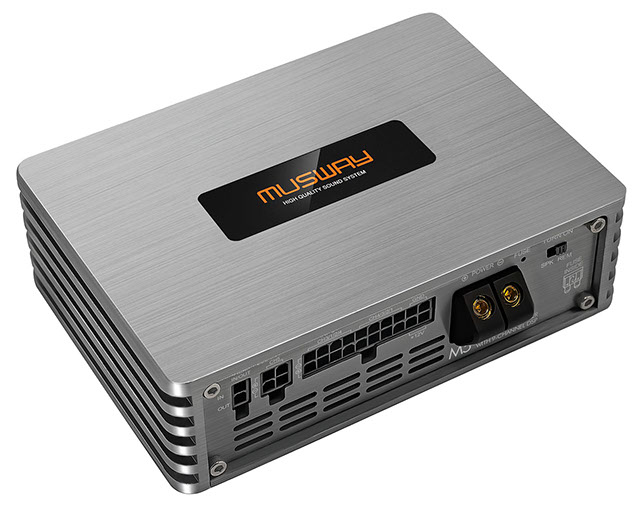

M5

5-CHANNEL CLASS D AMPLIFIER WITH 9-CHANNEL DSP

Barely larger than a mobile phone, the M5 fits into the smallest of spaces. Although there are many small Class-D amplifiers, none of them offer an output of 500 watts RMS and an integrated 9-channel DSP in this size. This all-rounder can shine as a high-quality component in a sophisticated high-end system or effortlessly fill a vehicle with sound. It owes its impressive versatility to the 9-channel DSP, which seamlessly integrates additional components with four additional, externally usable channels. No matter what sound visions you want to realize, the M5 is a future-proof investment that adapts perfectly even if you expand later without having to replace it. Four powerful 50-watt RMS channels are available for passive front and rear systems - and even for the subwoofer, with 300 watts at 2 ohms in active mode, there is still plenty of power left over.

As is usual with Musway, only the highest quality components are used in the M5: The Analog Devices DSP chip ADAU1452 is a dream, flanked by Burr-Brown converters. Sound adjustments can be made in a flash using an app or PC software. Whether it's frequency or runtime correction, Q factor, runtime adjustment, phase rotation or complex crossover configurations, all settings are available to you to professionally meet audiophile requirements.

The EVO version of the M5 has a 20 cm cable harness with open ends, while the regular M5 comes with a 2.5 meter long ISO cable for easy plug+play connection to the car radio.

Features:

• High Level Input with EPS® (Error Protection System)

• Start-Stop ready, Auto Turn-On

• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)

• Dual 64bit, 295 MHz DSP technology, controllable via PC software or Smartphone App

• Signal-to-noise Ratio 95dB

• Frequency Response 10 Hz – 20 kHz (-3dB)

• THD 0,015% (1 kHz, 4 Ohms, 90% Power)

• Plug+Play with vehicle-specific cable sets

• Inclusive 2,50 m MX-Connect™ Cable Harness on ISO

• External Bluetooth® USB-Dongles BTS, BTS-HD & BTA2 for Audio Streaming & App Control (optional)

• Digital remote control DRC1 with OLED display for controlling various DSP functions (optional)

• Quick Connect Terminal to connect MUSWAY Subwoofer Systems

EUR 579,00 Standard Version with MX-Connect™ Cable Harness on ISO

EUR 549,00 EVO Version with connection cables to open ends

Manufacturer's suggested retail price, changes and mistakes reserved.

All trademarks, trade names or brands are the property of their respective owners.
