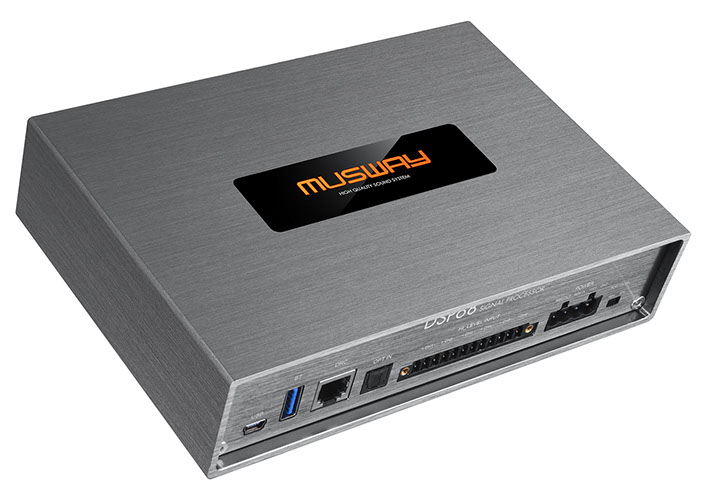

DSP68

8-CHANNEL DSP WITH PC/APP CONTROL

The sound of the standalone DSP68 processor is in top form, and the features are also unique in this price range: In addition to a stereo AUX input, there are 6 RCA and high level inputs. The latter can be operated without compression up to 21 volts RMS and come with the proprietary developed load detection protection circuit EPS®. Those who like it completely audiophile can control the DSP68 via an optical digital input. With this more than complete equipment, the DSP68 received a lot of praise and the price tip in the Car & Hifi Test 02/2021.

Features:

• High Level Input with EPS® (Error Protection System)

• Start-Stop ready,  Auto Turn-On

• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)

• Dual 32bit, 330 MHz DSP technology, controllable via PC software or Smartphone App

• Separately adjustable input sensitivity (CH1-4, CH5-6, AUX)

• High quality full aluminum housing

• External Bluetooth® USB-Dongles BTS, BTS-HD & BTA2 for Audio Streaming & App Control (optional)

• Digital remote control DRC1 with OLED display for controlling various DSP functions (optional)

Specifications:

6 x High Level Input with EPS®

6 x Low Level Input RCA

2 x AUX Input RCA

1 x Optical Input/Stereo PCM

8 x Pre-Amplifier Output RCA

Dimensions: 181 x 41 x 124 mm

EUR 349,00

Manufacturer's suggested retail price, changes and mistakes reserved.

All trademarks, trade names or brands are the property of their respective owners.

Recommended Accessories:

DRC1

Digital Remote Control with Display
to control the DSP Functions

Compatible with all DSP models

BTS

Bluetooth® Dongle for

Audio Streaming

Compatible with all DSP models

BTA2

Bluetooth® Dongle for

Audio Streaming & App Control

Compatible with the DSP models
TUNE12, DSP68, M6v3/v4, M4+v3/v4,
D8v3/v4, M10, M12, M5

BTS-HD

Bluetooth® Dongle for

HD Audio Streaming

Compatible with all DSP models
