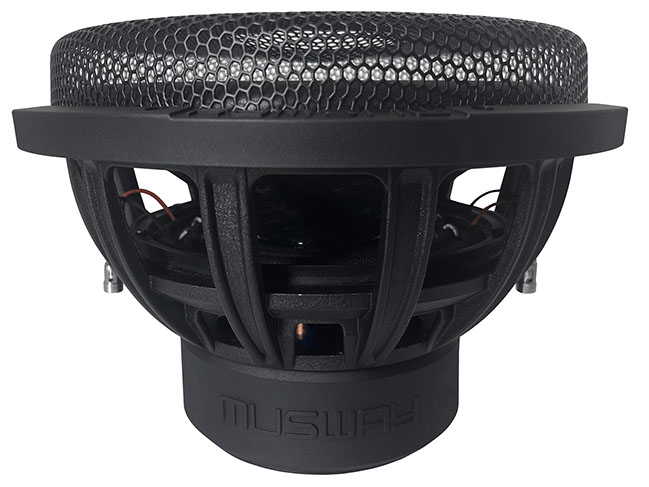

MG12

30 CM (12“) SUBWOOFER INCL. PROTECTION GRILLE

MUSWAY stands for top sound, best workmanship and skilful design. Highly satisfied customers worldwide agree on this. The German slogan: Technik für Klangbegeisterte (Technology for sound enthusiasts) gets to the point: MUSWAY does not create products for the masses, but exclusively for those who share incomparable sound, breathtaking aesthetics and the latest technological refinements with passionate enthusiasm.



The new MG subwoofers fit perfectly into this philosophy, as they reveal what they are made of just by looking at them. Once the beautiful packaging is opened, you immediately notice the sturdy protection grille. There is no need to search for suitable protection because it is already included. However, the visual highlight of every MG woofer is undoubtedly the newly designed, elegantly crafted aluminum cast basket with its delicate struts and large ventilation windows behind the spider. The professional already suspects that the woofers equipped with double magnets will confidently produce any type of bass perfectly.



Not only is the first look convincing, the technology in detail is also impressive: all woofers are characterized by a particularly long and even membrane stroke. With the MG12 it is up to +/- 22 mm, i.e. a total stroke of an impressive 44 mm is possible! This enormous deflection is controlled by specially shaped dual spiders made of polycotton, the properties of which have been continuously optimized by the MUSWAY sound engineers in laboratory and sound tests. The moving mass (Mms) could also be kept low by using copper-clad aluminum voice coils (CCAW). All of the measures result in very favorable Thiele/Small parameters, so that the subwoofers are also very suitable for closed housings. What stands out here is the MG10, which, with a speaker volume of 25 liters, plays deep and cleanly into the bass cellar up to 43 Hz (-3 dB). Anyone who attaches great importance to high impulse fidelity and cleanliness should choose this version.



If you like it fuller at the bottom, you should opt for bass reflex constructions. Due to their design, these can produce even more deep bass by utilizing the air in the housing with a specially tuned reflex channel. Here all three woofers unfold their potential and are easily able to play down to below 30 Hz.

Specifications:

700 Watts RMS, 1400 Watts Max.

Impedance 2 + 2 Ohms

76 mm (3") Voice Coil

Sturdy Aluminum Cast Basket

Pre-assembled Protection Grille

2 x 1,7 kg (60 oz.) Magnet

Fs 30 Hz • Qts 0,4 • VAS 64 L

SPL 91 dB/2,38V/1m, Xmax +/- 22 mm

Installation Depth 181 mm

Installation Diameter 285 mm

EUR 349,00

Manufacturer's suggested retail price, changes and mistakes reserved.
